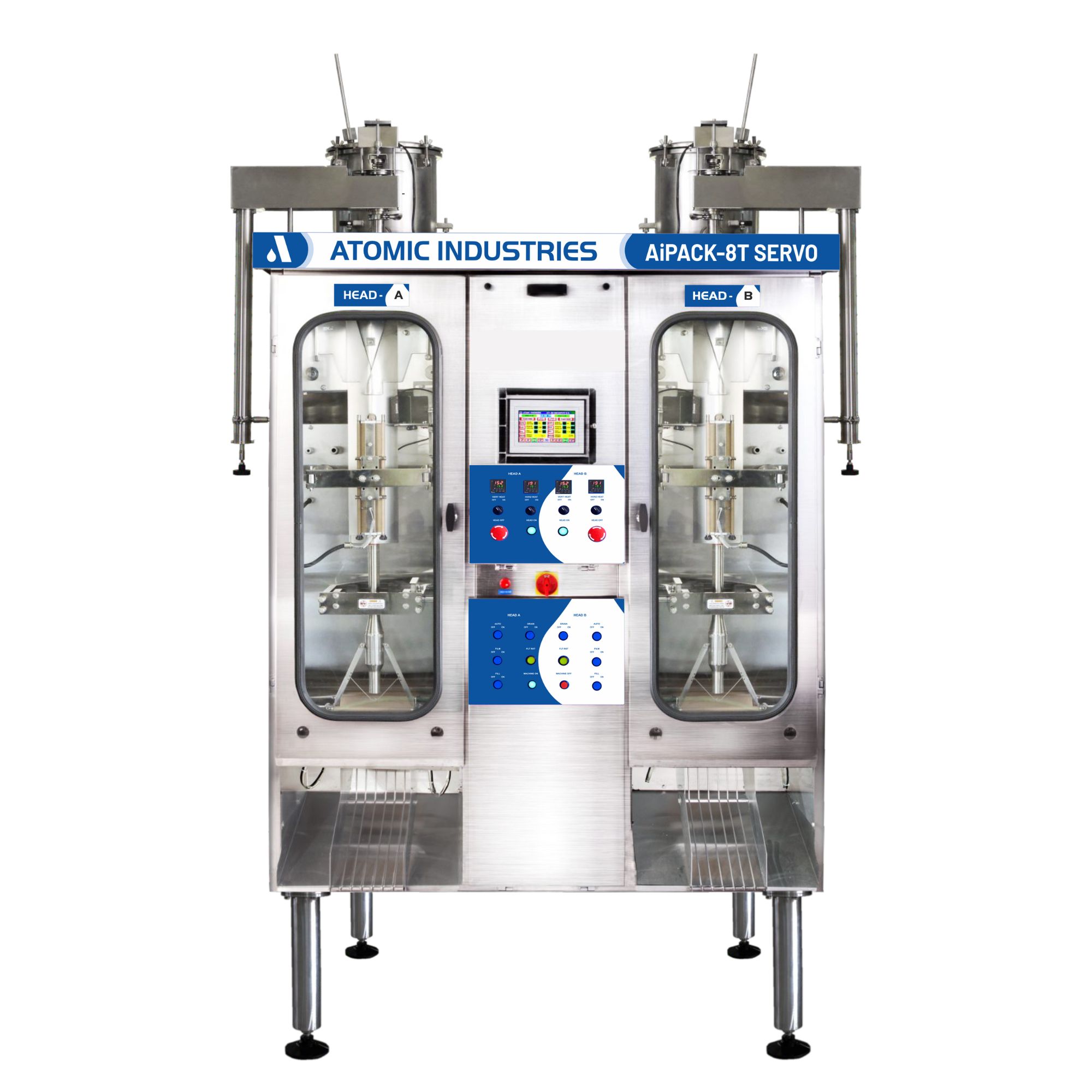

Medium-speed milk pouch packing machine – AiPACK-8T SERVO

Salient Features

  •  All Stainless Steel construction offers hygiene and food safety
  •  CE marked Automation Platform
  •  Servo Controlled Bag Length Control and Sealing Mechanisms
  •  Production recipes settable through HMI
  •  Production data on HMI for analysis and MIS
  •  Advanced Constant heat sealing technology
  •  Built in UV sterilization for Film
  •  Compatible to In-place cleaning (CIP) systems
  •  Different fixed pouch width options available ie.75mm, 100mm, 125mm and 150mm



Optional Accessories

  • Photomark Scanner
  •  TTO Printer
  •  Extended Legs
  •  Tray stand & Platform

Description

The AiPACK-8T SERVO is a medium-speed milk pouch packing machine (8,000 PPH) designed to help mid-sized dairies increase daily production with consistent quality and lower operating effort. It handles a wide pouch range from 150 ml to 1000 ml, giving dairy plants flexibility to run multiple SKUs without long changeover times. The machine delivers 8,000 pouches per hour for 200–500 ml packs and 5,000 pouches per hour for 1-litre packs, making it ideal for growing milk, buttermilk, whey, and juice lines. Its servo-controlled drive ensures steady performance, accurate pouch length, and strong, leak-proof seals. This reduces wastage and improves output stability during long production hours. The AiPACK-8T SERVO also offers UV film sterilisation to maintain hygiene and protect product safety. Its stainless-steel construction enhances durability and supports all food-grade requirements. The HMI interface gives operators direct control over recipes, pouch-width selection, and production data, allowing quick adjustments during live operations. It works with co-extruded LDPE and LLDPE films, producing the industry-standard center-sealed pillow pouch. The constant-temperature sealing system ensures uniform sealing quality, even when running at maximum speed. The machine is also compatible with CIP systems, allowing faster cleaning and reduced downtime. These features make the AiPACK-8T SERVO a reliable choice for dairies that want an efficient and flexible setup. For plants expanding production capacity, this medium-speed milk pouch packing machine (8,000 PPH) offers a balanced combination of speed, hygiene, and easy operation. It supports long production cycles while keeping maintenance needs low. Its robust design and automation-focused engineering help dairies improve efficiency and reduce manual intervention. With accuracy, hygiene, and versatility, the AiPACK-8T SERVO delivers dependable performance for every shift.

Additional information

Pouch Quantity Range

150 ml to 1000 ml

Speed / Capacity

Up to 8000 pouches/hr for 200ml to 500ml
Up to 5000 pouches/hr for 1000ml

Accuracy

± 0.2% to ± 0.5%

Packaging Material

Co- extruded Heat Sealable LDPE/LLDPE
of thickness as per regulatory norms.

Package Style

Center sealed pillow pouch

Power

Stabilized AC 3phase 400V ±1%

Power Consumption

1.5 KWH / (Unit) Approx.

Machine Dimensions

1545mm (L), 1125mm (W), 2520mm (H)
