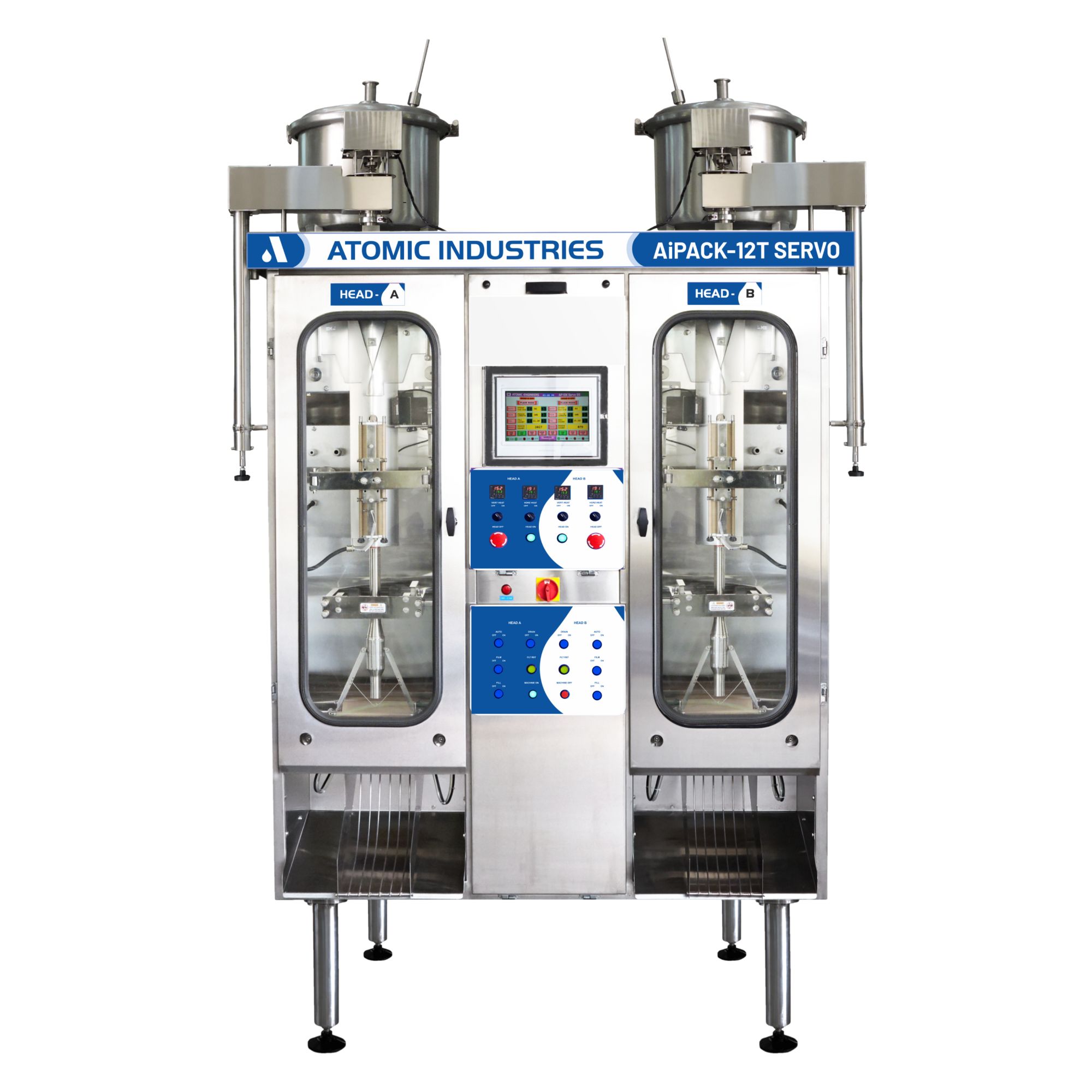

Dual-head liquid packaging machine – AiPACK-12T SERVO

Salient Features

  •  50Kg regular type mid positioned trolley for film loading
  •  All Stainless Steel construction offers hygiene and food safety
  •  CE marked Automation Platform
  •  Servo Controlled Bag Length Control and Sealing Mechanisms
  •  Production recipes settable through HMI
  •  Production data on HMI for analysis and MIS
  •  Advanced Constant heat sealing technology
  •  Built in UV sterilization for Film
  •  Compatible to In-place cleaning (CIP) systems
  •  Different fixed pouch width options available ie.75mm, 100mm, 125mm and 150mm



Optional Accessories

  • Photomark Scanner
  •  TTO Printer
  •  Extended Legs
  •  Tray stand & Platform

Description

The AiPACK-12T SERVO is a dual-head high-speed liquid packaging machine designed for dairies and beverage manufacturers that require consistent output, hygienic operation, and maximum production efficiency. Built on a servo-driven automation platform, this model delivers highly accurate pouch forming, filling, and sealing, ensuring uniform results across every batch. With a capacity of up to 12,000 pouches per hour for 200–500 ml sizes, the AiPACK-12T SERVO helps producers significantly increase throughput while reducing operational downtime and wastage.

This machine supports a wide pouch-size range from 75 ml to 1,000 ml, making it ideal for multiple liquid applications including milk, curd, buttermilk, flavoured milk, juice, whey, coconut water, and similar products. Its advanced servo control ensures precise bag-length accuracy, while the constant-temperature sealing technology guarantees strong, leak-proof seals even under continuous high-speed operation.

To support the highest food-safety standards, the AiPACK-12T SERVO incorporates UV film sterilization, automatic product-level control, and a complete stainless-steel structure, ensuring compliance with dairy and beverage hygiene regulations. The machine is fully compatible with CIP (Clean-in-Place) systems, allowing quick sanitation cycles without manual intervention. This reduces cleaning time, improves hygiene, and lowers labour requirements.

The integrated HMI touchscreen provides easy access to recipe management, pouch-width settings, production data, and performance monitoring. Operators can switch pouch sizes quickly using the modular design, which reduces setup time and maximizes machine availability. The CE-certified electrical and mechanical components enhance reliability and long-term durability, making the AiPACK-12T SERVO a future-ready choice for expanding dairy operations.

Whether you run a mid-sized dairy or a large-scale processing plant, the AiPACK-12T SERVO offers a powerful combination of speed, accuracy, hygiene, and automation. If you need a machine that strengthens efficiency, ensures consistent product quality, and supports high-volume liquid packaging, this dual-head high-speed liquid packaging machine is one of the most dependable solutions in its category.

Additional information

Pouch Quantity Range

75 ml to 1000 ml

Speed / Capacity

Up to 90 pouches/min/head for 75 ml
Up to 12000 pouches/hr for 200 to 250 ml
Up to 12000 pouches/hr for 500ml
Up to 6600 pouches/hr for 1000ml

Accuracy

±1.5ml upto 250 ml & ± 2ml for 500 ml &
± 3 ml for 1000 ml

Packaging Material

Co- extruded Heat Sealable LDPE/LLDPE
of thickness as per regulatory norms.

Package Style

Center sealed pillow pouch

Power

Stabilized AC 3phase 400V ±1% ,50Hz

Power Consumption

1.5 KWH / (Unit) Approx.

Machine Dimensions

1545mm (L), 1225mm (W), 2520mm (H)
